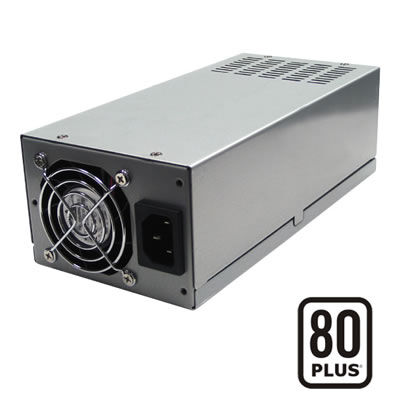

SeaSonic 600W Active PFC F0 2U PSU (SS-600H2U)

$354.99 $506.99

You Save: 30%

Free Shipping

Out Of Stock

Product Description

Features:
– Specification compliance: Intel EPS12V
– Forward converter circuit
– High efficiency and reliability for industrial level
– Easy swap connector design
– High reliability ball bearing fan
– Low ripple & noise
– Smart & Silent Fan Control (S2FC)
– Short circuit protection on all outputs
– Over voltage protection
– Over power protection
– 100% hi-pot test
– 100% burn in, high temperature cycled on/off
– PFC harmonics compliance: IEC1000-3-2 /EN61000-3-2 standards

Dimension: L270 x W100 x H70mm (10.6 x 3.9 x 2.7)
Fan type: 60 x 60mm
Connectors:Customized modular cables

Electrical Specifications:
– Input frequency: 50 / 60 Hz
– Inrush current, cold start: 100A max.
– Hold up time, full load: 16ms. typical
– Efficiency, 220-240VAC, full load: 83% typical
– Efficiency, 100-120VAC, full load: 80% typical
– Dielectric withstand, input to frame/ ground: 1800VAC, 1sec.
– Dielectric withstand, input to output: 1800VAC, 1sec.
– Line regulation: +/-1% typical
– Load regulation: +/-5% typical
– Cross regulation: +/-5% typical
– Ripple / noise: 1%
– MTBF, full load: >100K hours (Excluding the DC fan)
– Power Factor Correction: Active PFC 99% typical
Safety: CUL, TUV, CB, CCC
EMC: CE, FCC

Package contents:

1x SeaSonic 600W Active PFC F0 2U PSU (SS-600H2U)
